Tern NBD P8i

$ 3,199.00 $ 3,899.00

Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
Bosch PowerPack 400 powers long trips, commutes, and journeys
Shimano® Nexus 8-speed internal hub
Shimano hydraulic disc brakes for reliable stopping power—even when carrying cargo and riding fast

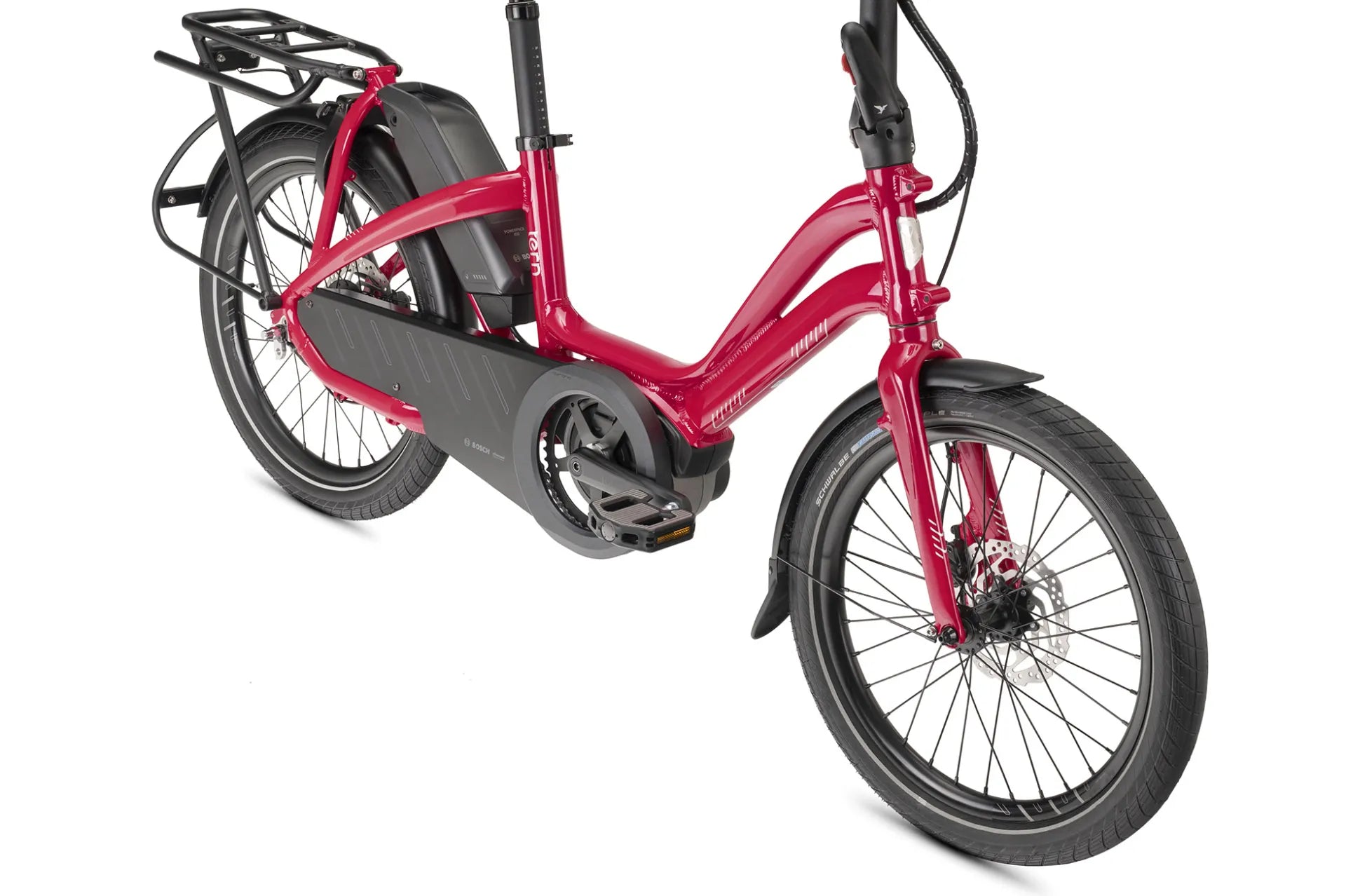

Ultra-low 39 cm (15.4”) standover height means gentle, low steps are all that’s required to get on and go
Ultra-low center of gravity improves balancing and maneuvering when riding with kids through parks and narrow streets
Fits riders 147 - 190 cm (4'10" - 6'3")

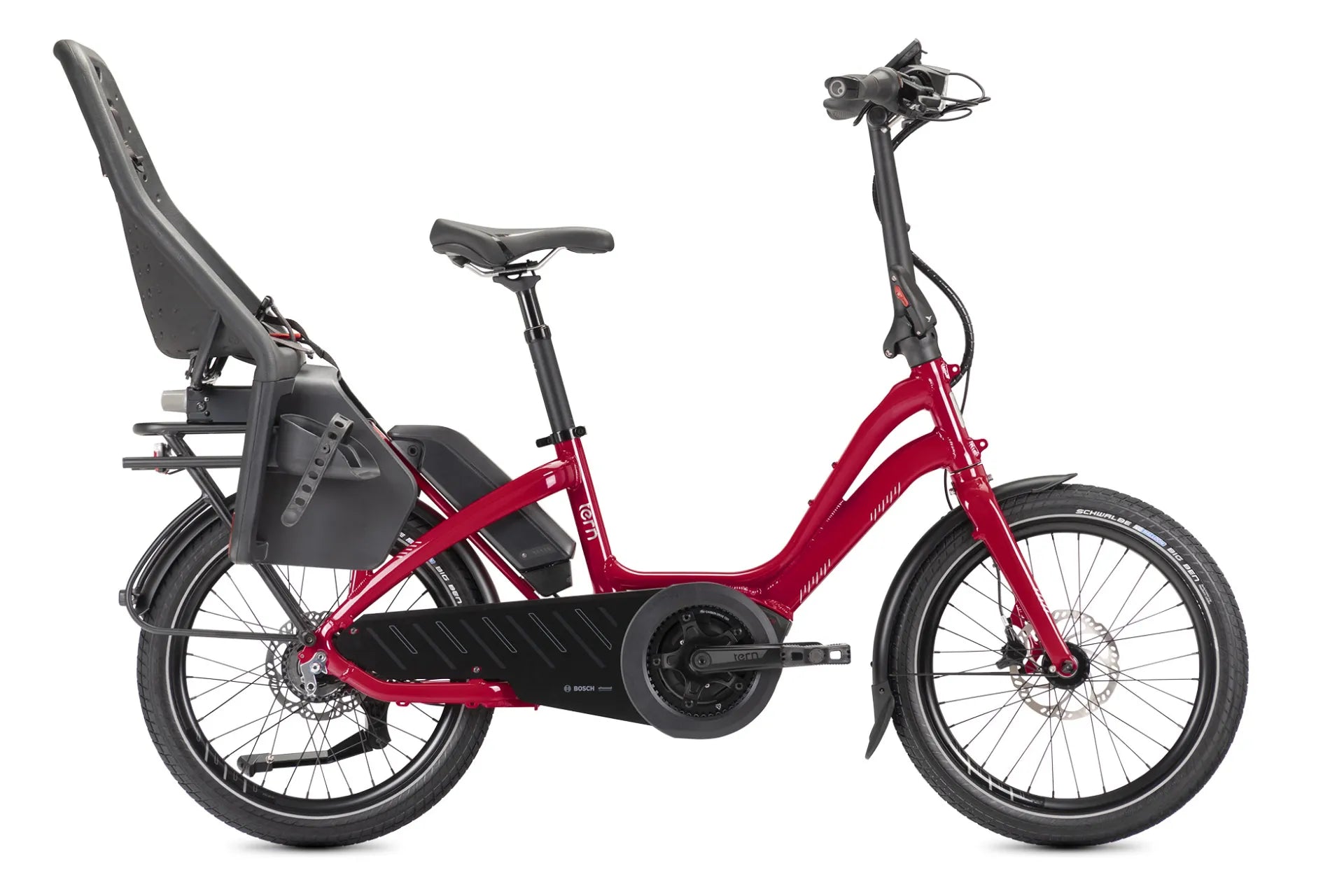

Gaia Rack is certified to carry up to 27 kg (60 lbs) and works with many child seats
Proven safe and reliable: frame and fork have undergone the EFBE Tri-Test to the 140 kg (309 lbs) Maximum Gross Vehicle Weight

Tern NBD Website

GENERAL INFO

Wheel Size:	20 inch wheels
Speeds:	1x8
Weight:	23.7 kg (52.2 lb)
Folding Time:	5 sec
Folding Size:	38 × 156 × 79 cm (15 × 61.4 × 31.1 in)
Gear Inches:	35" - 85" (2.78 - 6.81 m)
Distance: Seatpost To Handlebar:	45 - 52 cm (17.7 - 20.5 in)
Distance: Saddle To Pedal:	70 - 100 cm (27.6 - 39.4 in)
Suggested Rider Height:	147 - 190 cm (57.9 - 74.8 in)
Max Gross Vehicle Weight:	140 kg (308.6 lb)
Max Rider Weight:	120 kg. (264 lbs.)

FRAME

Frame:	Tern NBD, 6061-AL, Patented design, EFBE Tri-Test approved: 140 kg
Fork:	Tern Tarsus, 6061-AL, hydroformed, EFBE approved: 140 kg

COCKPIT

Handlepost:	Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 350 mm
Stem:	Tern Andros (G2), adjustable, forged construction, patented technology
Headset:	Tern Flux, cartridge bearings, Physis integrated
Handlebar:	Tern Sweep, 6061-AL, Tern Andros adapted
Grip/Bars Tape:	Ergon
Saddle:	Tern Upright by Velo

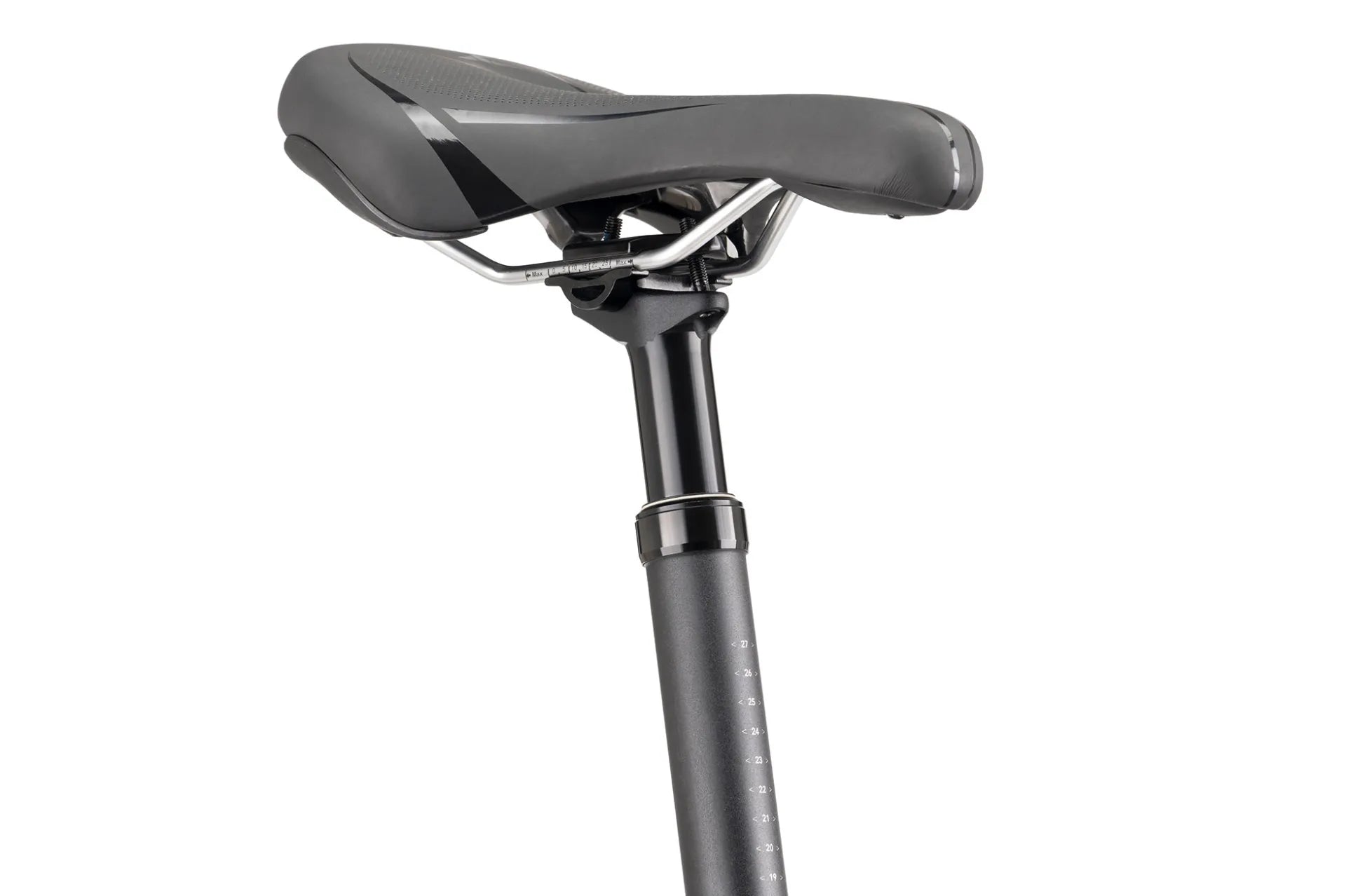

Seatpost:	Tern RideEasy Suspension, 34.9 mm

BRAKES

WHEELS

Front Hub:	Shimano disc
Rear Hub:	Shimano Nexus 8
Spokes and Nipples:	Stainless steel
Rims:	Kinetix Comp, for disc
Tires:	Schwalbe Big Apple, 55-406, puncture protection, Reflex

TRANSMISSION

Shifter(s):	Shimano Nexus 8
Crankset:	Tern NBD custom, forged 6061-AL crankarm
Cassette/Freewheel:	16T
Chain:	KMC for eBike, EPT corrosion resistant coating
Pedals:	MKS Platform, Tern Custom Design
Shifter Cable & Housing	Shimano

POWERTRAIN

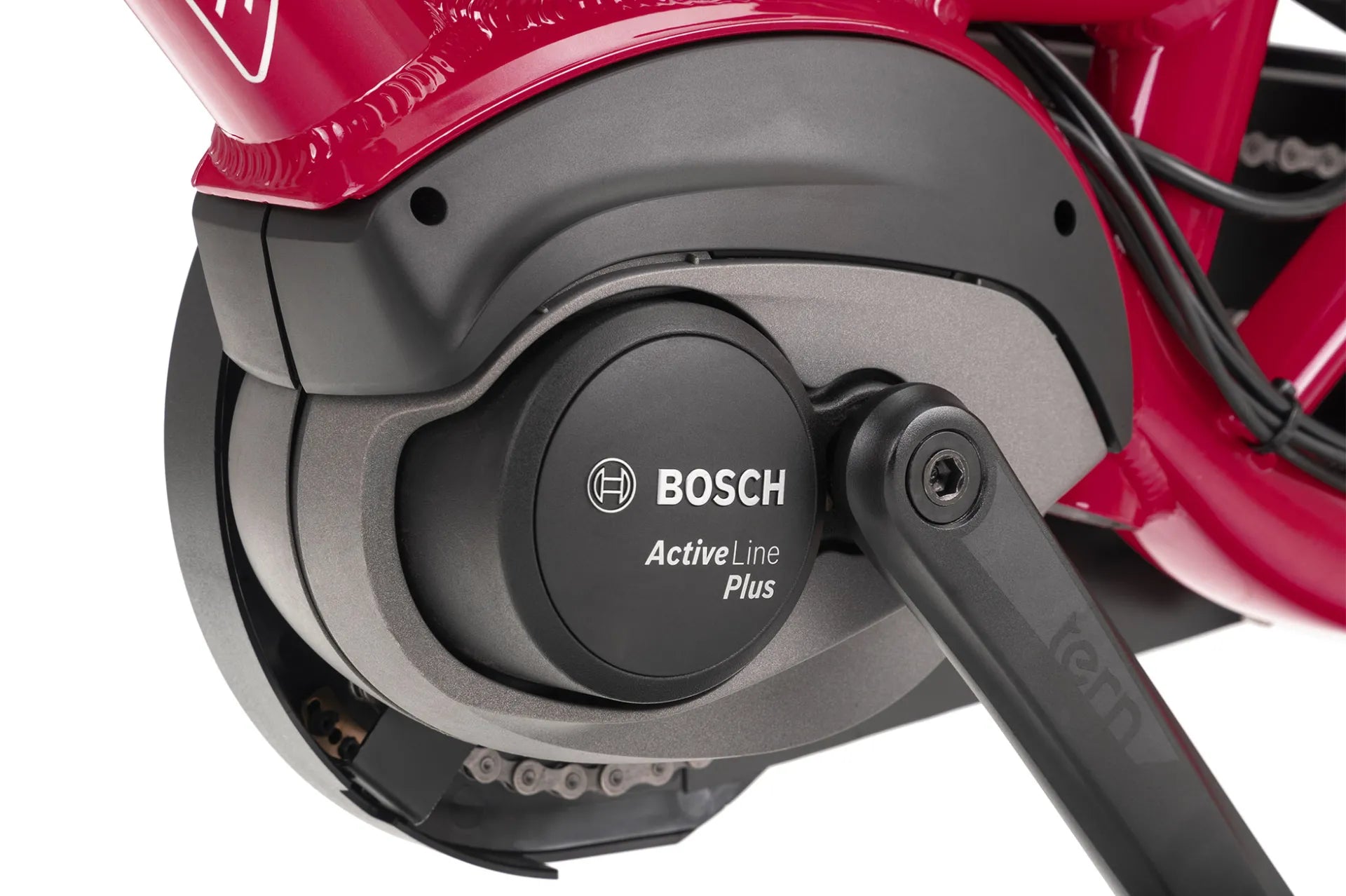

Motor:	Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery:	Bosch PowerPack 400
Display:	Bosch Intuvia, 4 mode selectable, walk assist
Range:	54 -108 km (34-67 mi)

EXTRAS

Bell:	Aluminum
Chainguard:	Tern Custom, full chain cover
Kickstand:	Ursus, rear mount

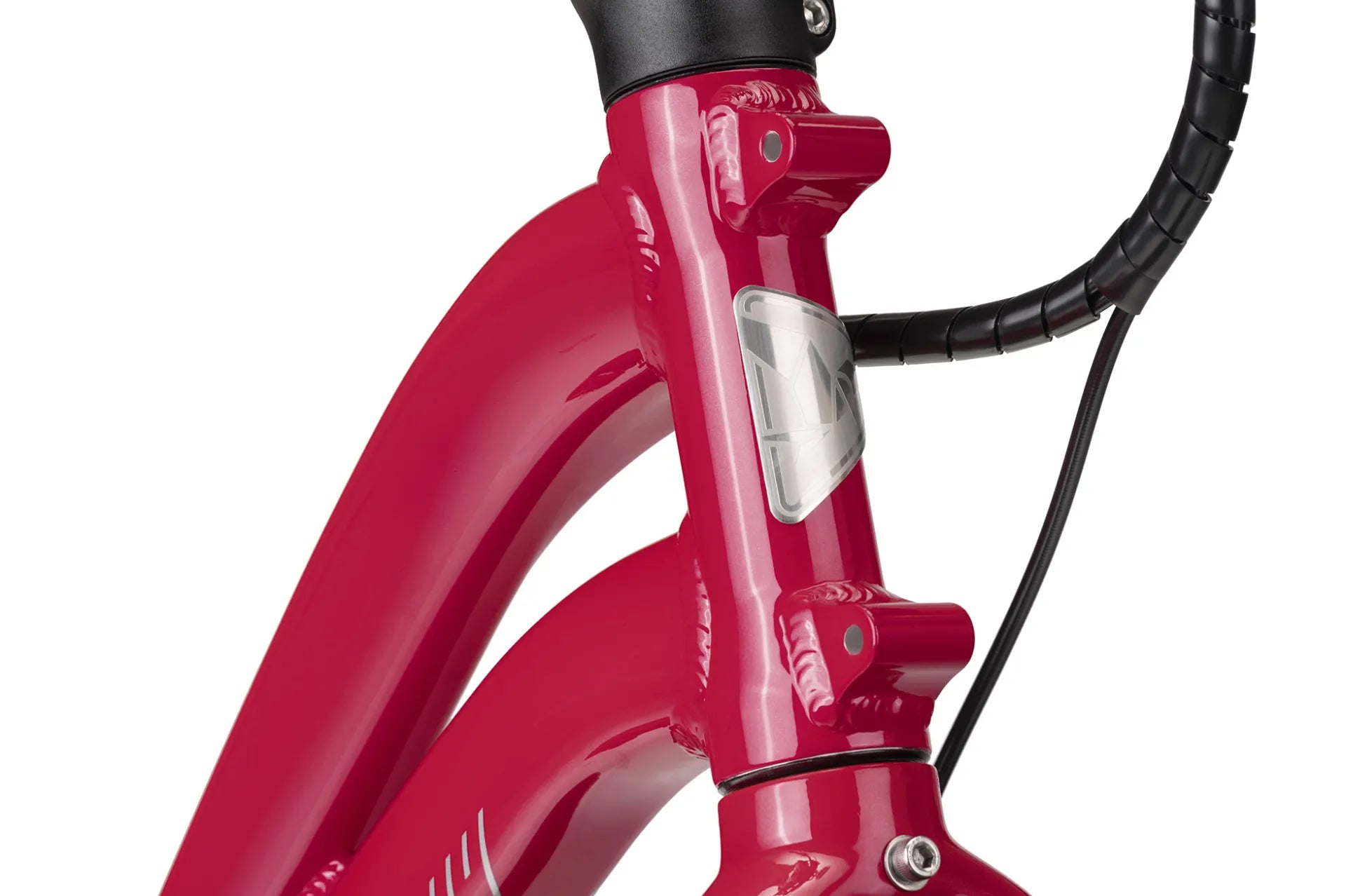

Luggage Socket:	Combo Mount

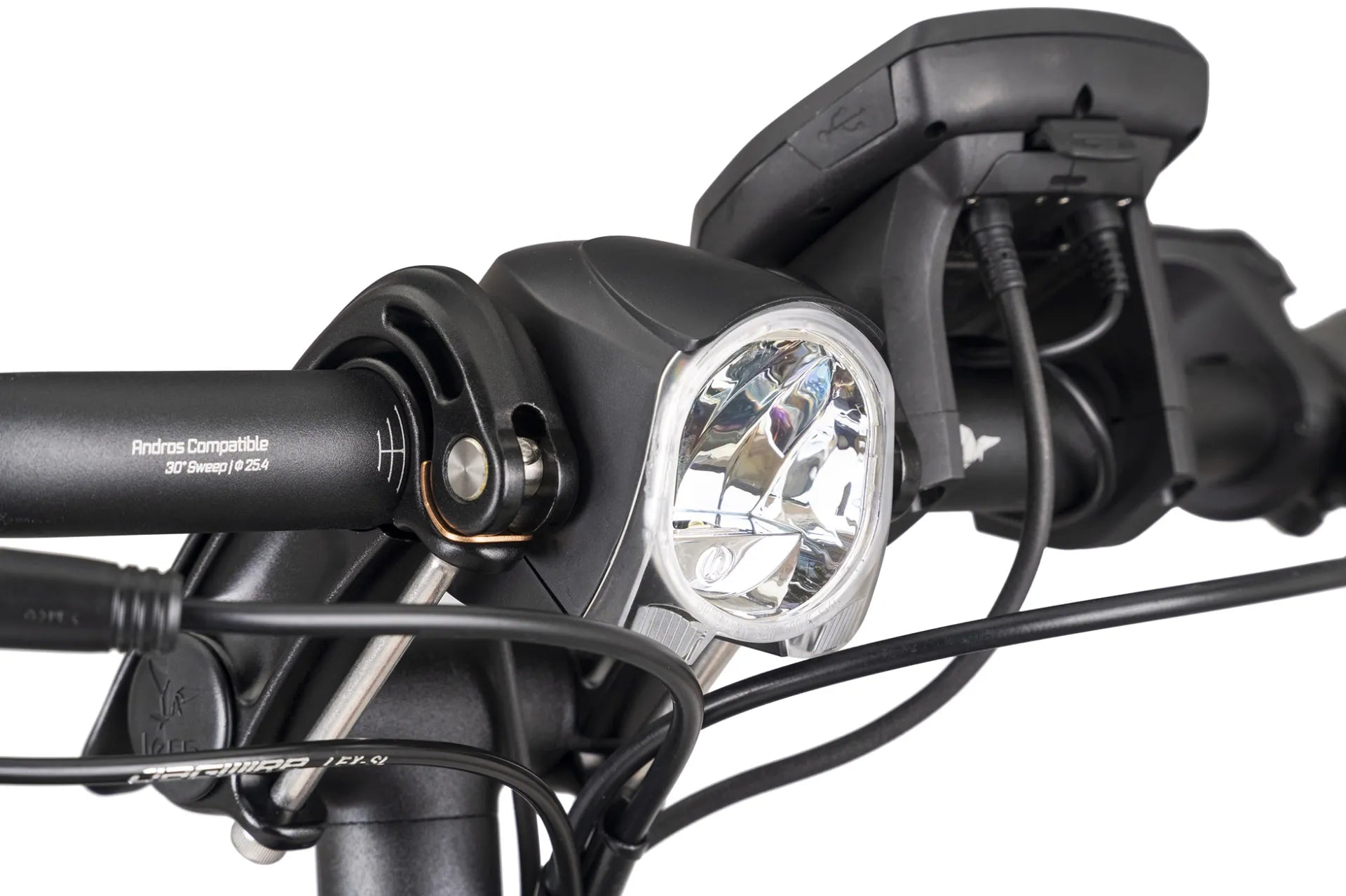

Front Light:	Tern Valo Direct 190 lumens
Rear Light:	Herrmans
Fenders:	SplashGuard, Stainless Hardware
Rack:	Gaia Rack, 27 kg capacity, Vertical Parking
ACCESSORY:	ABUS keyed-alike with Bosch battery
